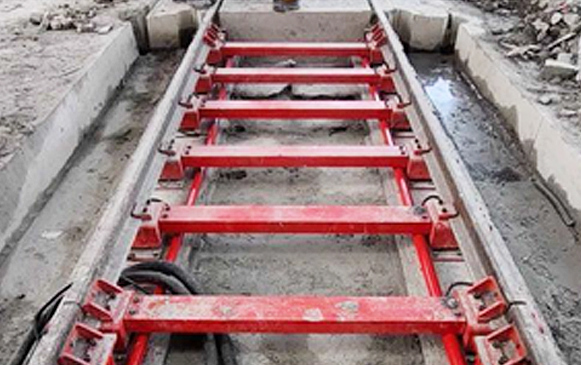

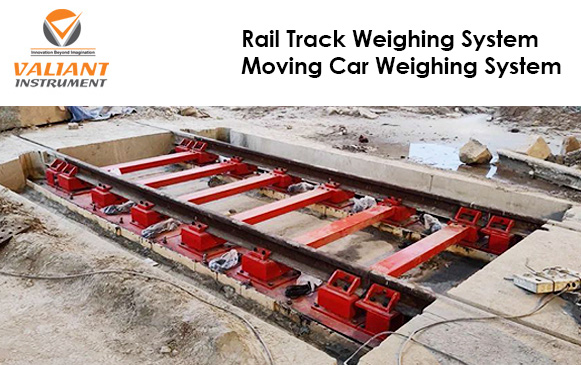

Ladle Transfer Moving Car Weighing System
Valiant Instrument solutions for scrap and ladle car weighing base on our robust and highly temperature compensated load cells and weigh modules paired with our transmitters, indicators and wireless options. High impact forces, harsh environment and extreme temperature are the key challenges of the application not every supplier can handle. Because of our long experience in the metal industry, you can rely on us to provide the best solution for your specific demands.
Durable Load Cells for Harsh Environments
Valiant Instrument load cells and weigh modules are optimized for the demands of scrap and ladle car weighing application:
300 % ultimate overload, temperature compensation available up to 200°C, high ingress protection rating and various optionsfor cables, connectors and fire sleeve protection to choose from. Paired with our state-of-the-art transmitters, indicators and communication options MEASUREDI solutions deliver high weighing accuracy and long-term reliability.
Valiant Instrument load cells and weigh modules are optimized for the demands of scrap and ladle car weighing application:
300 % ultimate overload, temperature compensation available up to 200°C, high ingress protection rating and various optionsfor cables, connectors and fire sleeve protection to choose from. Paired with our state-of-the-art transmitters, indicators and communication options MEASUREDI solutions deliver high weighing accuracy and long-term reliability.
Key Features
- High accuracy
- Wireless transmission of the weight to PC (or) PLC
- Civil work is most minimum
- MOBIRAIL based static weighing of ladle cars
- Suitable for tough environmental conductions
- Mechanically rugged design
- High resistance to the influence of temperature
- MOBIRAIL is modular based weighing structure
Benefits:
1) Simple installation – No double frame needed
2) Suitable for very harsh environments.
3) Maintenance free – No additional bumpers or lift off protection.
4) Compact design reduces shunt force influences from dust and slag
Weighing Accuracy:
The solution allows the total weight of the ladle to be measured with an accuracy up to ± 0,1 % of Full Scale.
Ladle Turret Weighing System
Ladle turret scales are used for example in continuous casting facilities where the liquid steel is cast into continuous strands. The weighing equipment is used in the ladle turret, tundish and outgoing roller table to determine the weight and control the process.
The incredibly robust ladle turret scales are manufactured for the prevailing harsh ambient conditions. They are not affected by
shock, interfering forces or huge fluctuations in temperature.
Increase Safety an Efficiency in your production process by installing a Ladle Weighing System Knowing the precise net weight of each ladle will allow you to:
- Supervise and control the whole steel making process with certain knowledge of the amounts and locations of Pig Iron and
Steel within the process - Calculate the most efficient amounts of Scrap and Alloys to be used
- Reduce spillage during the filling and pouring process
MEASUREDI High temperature load cell 40 – 200 ton are installed between the base structure and the weighbridge, without need for modifications of the ladle supporting geometry
Steel / Coal Plant Weighing
| Weighing Capacity | Up to 500 Ton |
|---|---|
| Type | Electronic |
| Usage / Application | Molten Metal Transportation |
| Load Capacity | 600 Ton |
| Material | Steel |
| Ladle Shell | Closed, Open, Heat Insulated |
| Warranty | 12 Months |
| Installation Available | Yes |
| After Sales Service | Available |
| Mechanical Design Accuracy | ± 1% |
| Country of Origin | Made in India |
