Pit Type Weighbridge
Precision Weighing Built to Ground Level.
Capacity: 10MT to 100MT

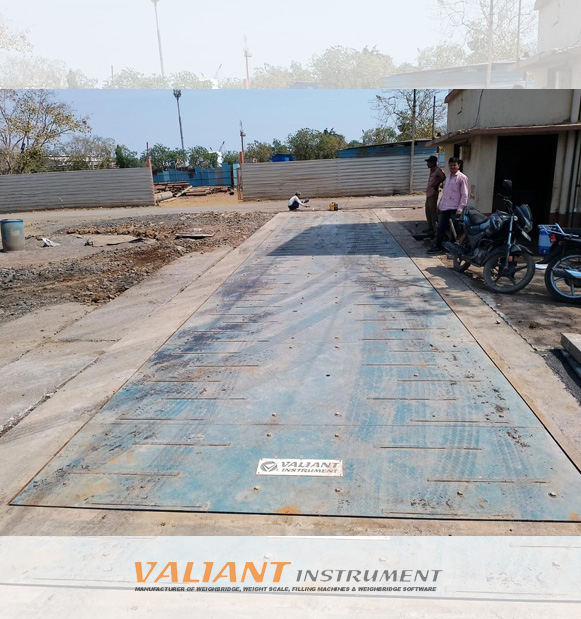

Valiant Instrument’s Pit Type Weighbridge is a robust, space-efficient solution designed for high-accuracy vehicle weighing in areas with limited space. Ideal for industrial zones and locations where ramp access is restricted, this model offers seamless vehicle movement as the deck aligns with ground level.
With a capacity ranging from 10MT to 100MT, the structure, load cells, and pedestals are securely placed below ground, ensuring protection and minimal exposure. It requires a proper natural drainage system and occupies only the footprint of the weighbridge size eliminating the need for ramps.
Built with high-grade components and engineered for integration, it supports RS 232, RS 485, or 4 to 20 mA outputs, with Modbus or Ethernet compatibility. The system easily connects with computers or PLCs for seamless data management, and a jumbo display enhances visibility for drivers.
This secure design also limits external access to core components, adding an extra layer of operational safety and reliability.
Upgrade Benefits of Pit Type Weighbridge
Upgrading to Valiant’s Pit Type Weighbridge ensures higher performance, safety, and operational efficiency. Here are the key benefits:
-
Space Optimization: Ideal for locations with limited space—no need for ramps or extended approaches.
-
Enhanced Accuracy: Advanced load cells and electronics deliver highly precise weight readings.
-
Seamless Vehicle Flow: Ground-level deck allows easy entry and exit from all directions.
-
Improved Safety & Security: Below-ground components reduce exposure and unauthorized access.
-
Smart Connectivity: Compatible with PLCs, computers, and ERP systems via Modbus, RS 232/485, or Ethernet.
-
Driver Convenience: Jumbo display enables clear visibility for operators and drivers.
-
Long-Term Reliability: Durable design built to withstand harsh industrial environments with minimal maintenance.
-
Future-Ready: Scalable for automation, remote monitoring, and data analytics integration.
Upgrading not only improves your weighing accuracy but also boosts operational control and longevity.
Frequently Asked Questions (FAQs)
Pit Type Weighbridge

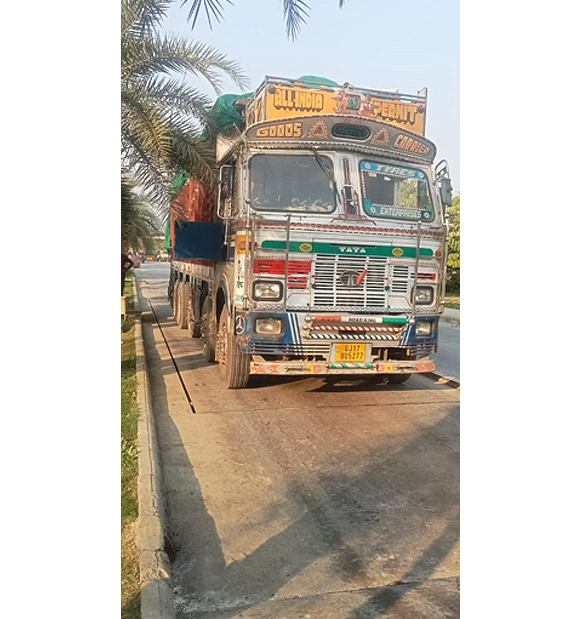

A Pit Type Weighbridge is a vehicle weighing system installed with its platform flush to the ground. It’s ideal for areas with limited space as vehicles can approach from any direction without the need for ramps.
Our Pit Type Weighbridges are available in various capacities ranging from 10MT to 100MT, depending on your specific industrial needs.
This type is best suited for non-hilly areas with good natural drainage and where space constraints limit the use of ramp-based models.
Absolutely. The weighbridge supports integration with PLC, ERP systems, and computer software via RS 232, RS 485, Modbus, or Ethernet connections.
Yes. All components are housed below ground, offering protection from environmental damage and preventing unauthorized access.
Yes, although the structure is below ground, Valiant’s design ensures easy access for maintenance. We also offer AMC services for regular inspection, calibration, and repairs.
We provide jumbo LED displays that ensure clear visibility for drivers and operators, enhancing usability and efficiency.
The area required depends on the chosen weighbridge size. Since it’s a pit type, no additional space for ramps is needed, making it compact and space-efficient.
Yes, it is specifically designed for industrial sectors and can handle a wide range of commercial vehicles including trucks, trailers, and trolleys.
Yes, Valiant Instrument offers complete installation, commissioning, and operator training to ensure smooth and safe operation from day one.
