Load Smarter, Work Faster

VALIANT Onboard Weigher

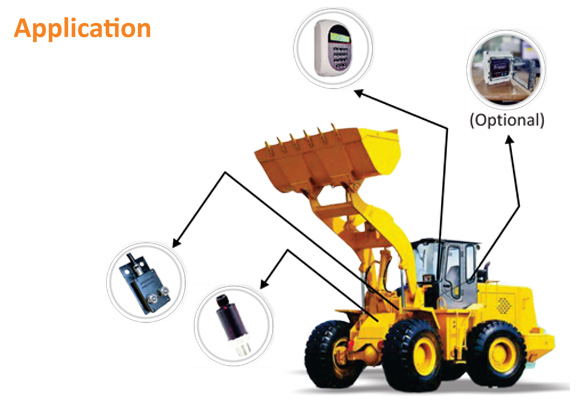

The Valiant On Board Weigher is a highly reliable electronic weighing solution designed for wheel loaders, excavators, and articulated dump trucks. This advanced system enables accurate weighing of materials during loading, ensuring efficiency and precision. It helps prevent underloading or overloading of vehicles at the very moment of loading, improving safety, productivity, and compliance in every operation.

Weigh Modes

  1. Increment mode to lift unknown weight
  2. Target mode to lift targeted material
Get A Quote

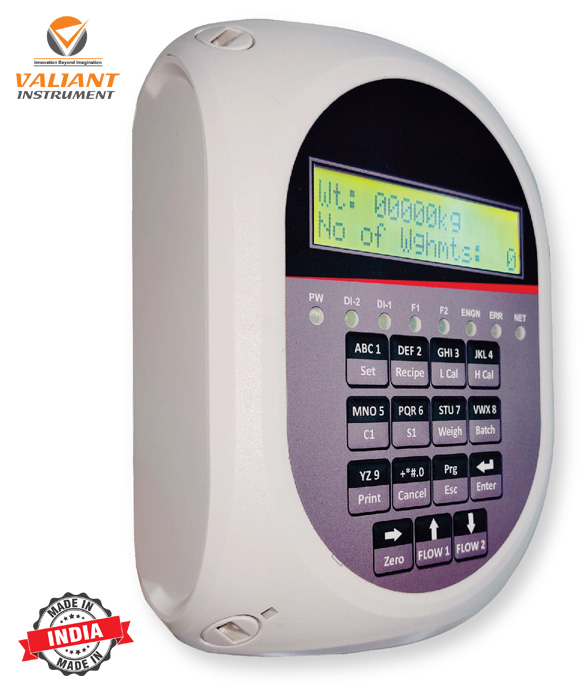

VALIANT Onboard Weigher

Key Features of Valiant Onboard Weigher

  • Durable ABS Housing – Designed with robust ABS construction and easy cabin mounting.

  • Clear LCD Display – 16×2 LCD screen for clear weight and message visibility.

  • User-Friendly Operation – 15-key front keyboard for smooth and quick operation.

  • Smart Sensor Integration – 2 digital inputs for proximity sensors.

  • High Accuracy – On-board weighing accuracy up to 2–3%.

  • Thermal Printing Options – Print slips with optional front-mount thermal printer and generate detailed reports.

  • Advanced Reporting – Multiple report options, including operator-wise data.

  • Data Export Made Easy – Pen drive facility for exporting records in softcopy.

  • Firmware Upgradable – Easy updates via pendrive.

  • Operator Login Facility – Secure access for up to 9 operators.

  • Customizable Codes – 9 programmable codes for material names (sand, aggregate, etc.) and 9 codes for destinations.

  • Multi-Time Loading – Enables target achievement for lifted materials across multiple loads.

  • Large Data Memory – Stores up to 50,000 records for long-term operations.

Scope of Supply

  • Valiant Onboard Weigher Controller

  • Pressure Transducers

  • Proximity Sensors

  • Necessary Mountings

  • Cable Set

Advantages

  • Precise Advanced Weighing Electronics

  • System Accurate upto 2 to 3 %

  • Application Specific with All High-tech Features

  • Consistent & Convenient

  • Rugged & Reliable

Optional Features

  • Thermal Printer

  • GLCD Display

  • SMS Provision

  • Data Integration on Server

  • GPS Tracking

  • Validation

Technical Specifications

Microprocessor 32 Bit ARM processor
Memory 32 MB (No. of records approx 50,000)
Clock 120 MHz
Power supply SMPS with EMI/RFI and Spike Suppressor input filter
Input voltage 12 V power supply
Protection a) RFI/EMI filter for input power b) Spike Suppressor for input transients
Display 16×2 LCD Display
Indications Buzzer for fault and data entry
Key board 15-key front mount keypad for data & function entries
COM 1 For computer interface
Serial port (COM 2) For connecting serial printer
USB port USB Port configured for pen drive
Environment Operating Temp : 10° to 55° Celsius Humidity : 0 to 95% RH non-condensing

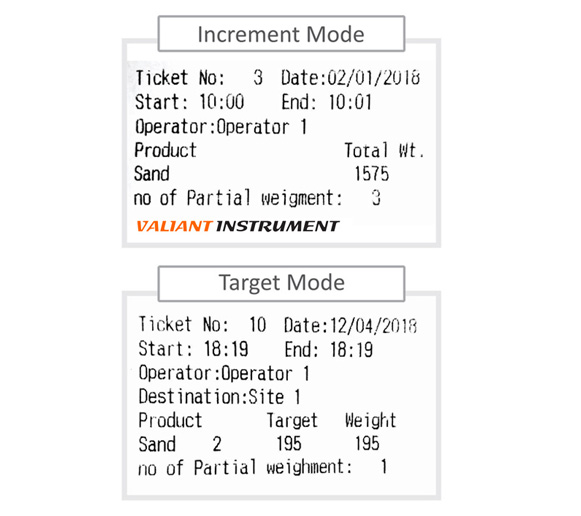

Sample Ticket Printout

Valiant Onboard Weigher

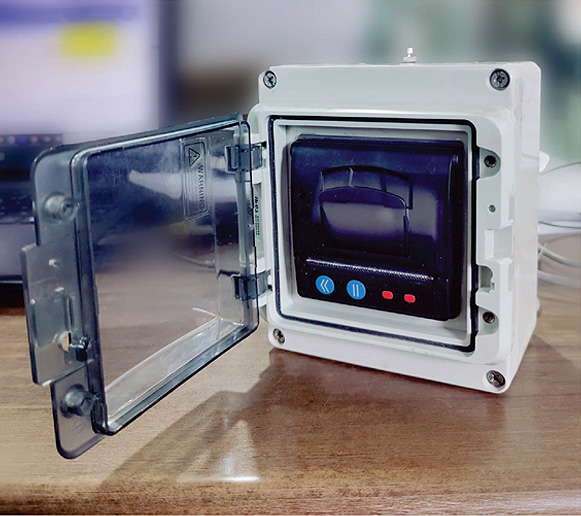

Thermal Printer (Optional)

Valiant Onboard Weigher - Thermal Printer (Optional)
